Camso UTV 4S1

Tough and ready for the long haul

UTV Track system with next level of performance in any conditions. You simply won’t find another track system offering this level of ride quality, performance, durability in any applications, including deep snow, swamps, marshes, mud and muskeg.

Traction
Flotation
Stability
Camso UTV 4S1
Camso UTV 4S1
Camso UTV 4S1

Technology

Exclusive Flex-Track Design

Exclusive Flex-Track Design

  • Camso’s Exclusive
  • Front tracks have flexible sides and slight curve toward the inside
  • Stable handling
  • More comfortable ride than traditional flat tracks
  • Precise steering for pleasant long-distance riding and all-day work

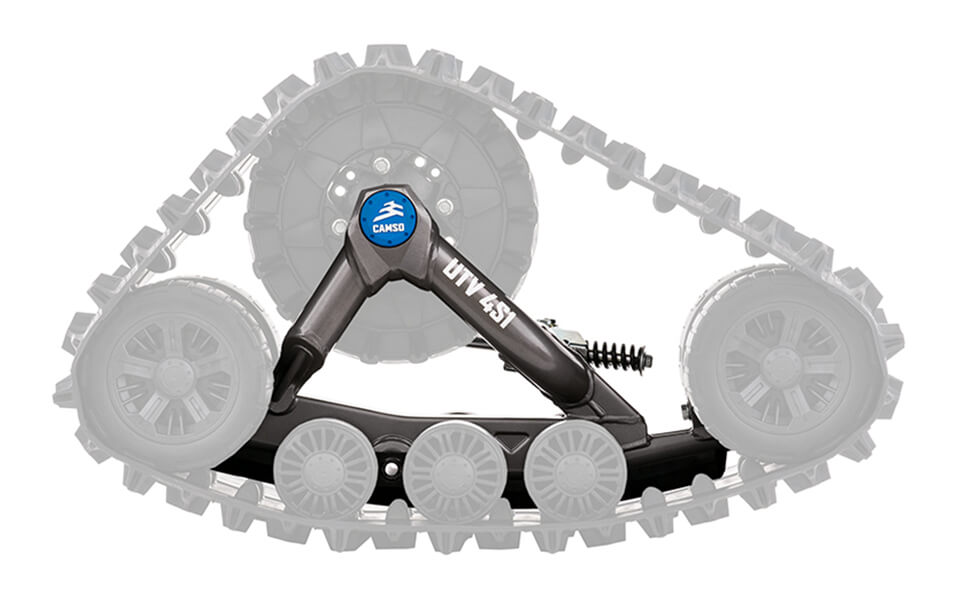

Solid Steel Frame

Solid Steel Frame

  • Open light-weight design
  • Improved durability and performance
  • Easily sheds snow, mud, and debris
  • Powder coated for long-lasting protection

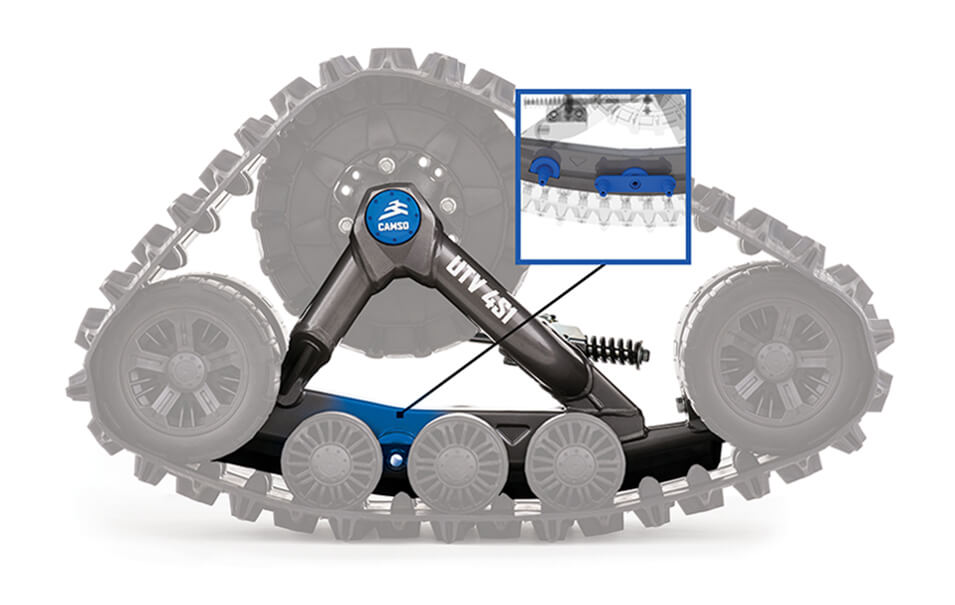

Tandem Stabilizer

Tandem Stabilizer

  • Absorbs shocks for a smoother and more stable ride
  • Rubber-mounted wheel shafts
  • Eliminates need for greasing

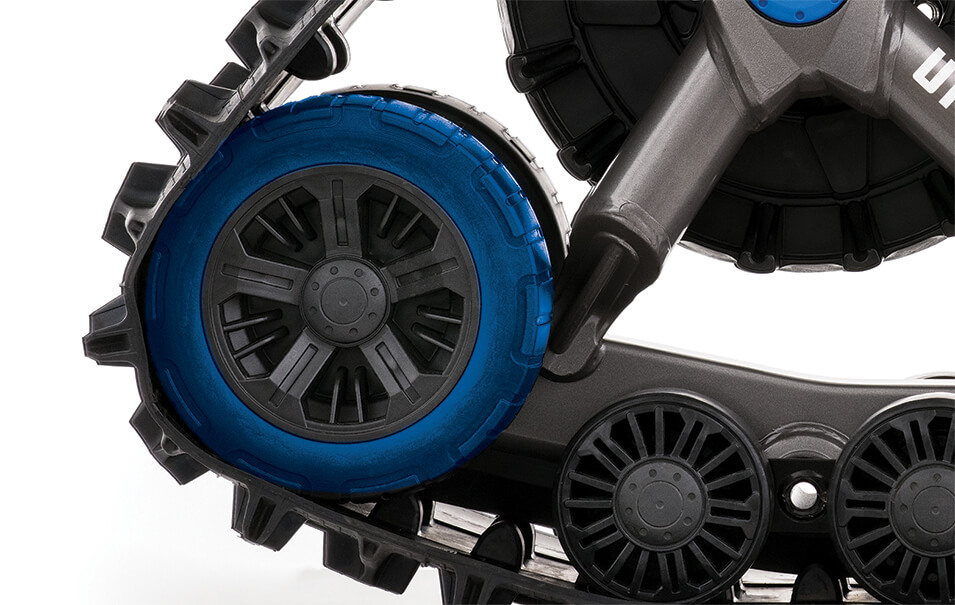

Puncture-Proof Tires

Puncture-Proof Tires

  • High-density tire with modified shape
  • Reduced friction and wear
  • Maximizes shock absorption to improve ride quality
  • Delivers trouble-free performance

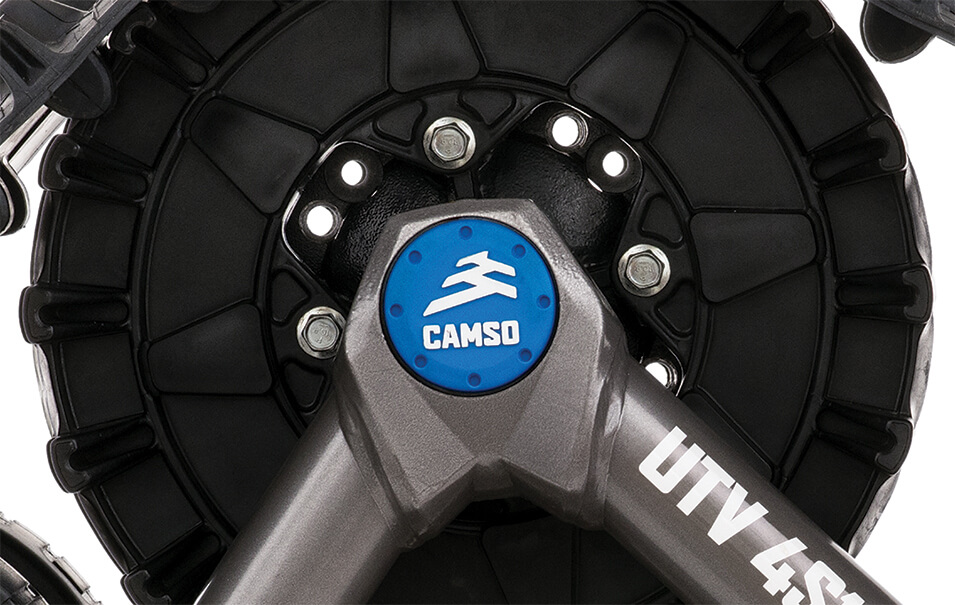

Bearing Housing

Bearing Housing

  • Triple bearing design with oil bath lubrication
  • Improved bearing durability
  • Stainless sleeves for greater reliability

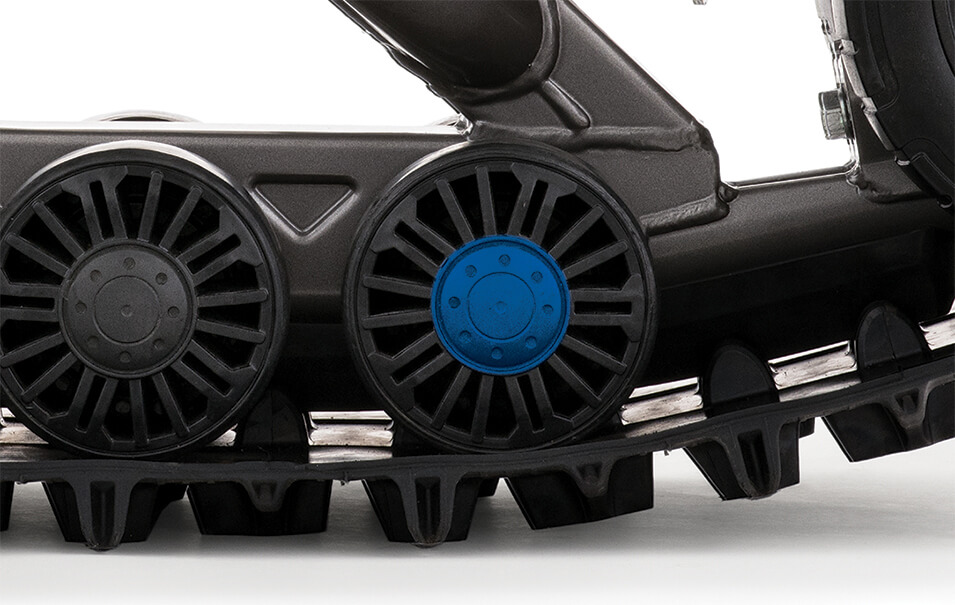

Wheel and Seal

Wheel and Seal

  • Enhanced wheel seal design
  • Improved sealing and guiding and reduced wear
  • Eliminates water absorption due to temperature variations

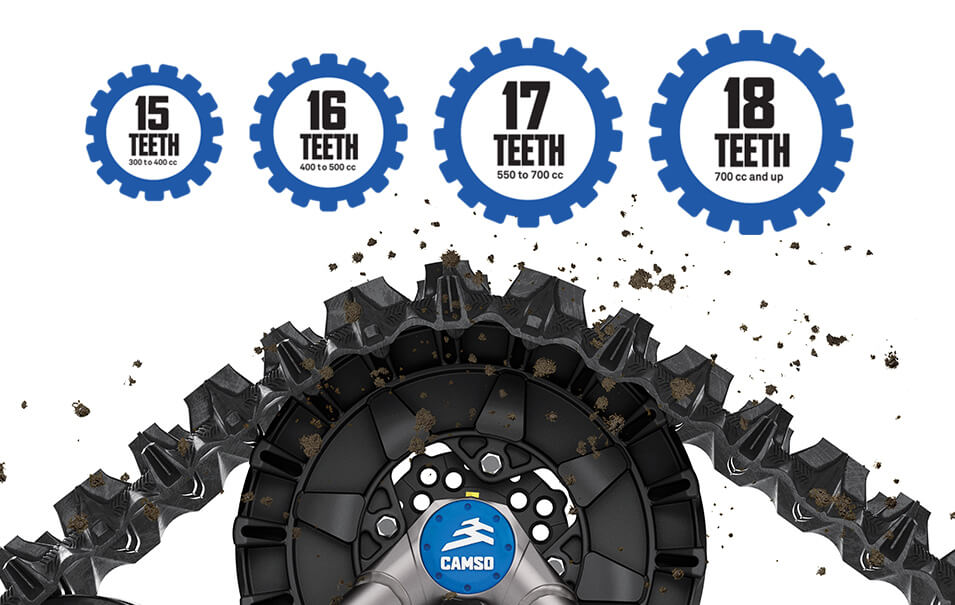

Vehicle change? No problem!

Vehicle change? No problem!

  • You can keep the same track system and install it on your new machine.
  • Camso tailors track systems to optimally match your engine.
  • For individual adaptation of your tracks you can order optimal sprockets size for your new vehicle.
  • It’s effective way to maximize your investment.

Specifications

Vehicle size

Recommended for: 4x4 UTVs, 400 ccm to 1100 ccm

Frame

Drive type Internal drive
Sprocket 15 to 18 teeth
Frame Carbon steel
Idler & Mid-roller Wheels/Tire 132 mm double-bearing mid-roller wheels (width: 50 mm) 241 mm double-bearing flat free tires. Bladder-type wheel cap and face seal.
Guide Molded UHMW
Hub and bearing Oiled 3-bearing with forged steel multi-bolt. (4-5) pattern hub.
Tandem & suspension Rubber mount steel tandem. Rubber mount aluminium shaft axle. Maintenance free.
Anti-rotation Redesigned mild steel anti-rotation single rate spring and progressive damper. Quick connect steering limiter design.

Rubber Track

Type Front: Flat Rear: Flat
Width Front: 318 mm, Rear: 356 mm
Length Front: 2 507 mm, Rear: 2 964 mm
Lug height Front: 29 mm, Rear: 29 mm

DIMENSIONS AND PARAMETERS

Ground surface 1.62 m²
Maintained speed (average)
Weight Front: 47 kg, Rear: 54 kg
Height Front: 637 mm, Rear: 626 mm
Length Front: 1081 mm, Rear: 1321 mm
Width Front: 318 mm, Rear: 356 mm
Mounting hardware weigth Approx. 2.75 kg
 Offset (length) Front: 673 mm, Rear: 889 mm
 Offset (width) 184 mm
  Ground clearance (average) Increased by 127 mm



All images are for illustrative purposes only. The Distributor reserves the right to change the prices and specifications without prior notice or obligation.
